Kärcher Puzzi 30/4 Spay Extractor + Puzzi 30/1 Power Washing Head

With a 30-litre fresh water capacity and a 350 mm floor nozzle, this innovative spray extraction machine is especially suitable for cleaning large carpeted areas. With a noise level of 66 dB (A), the Puzzi 30/4 spray extraction machine is the quietest wet vacuum cleaner in its class and ideal for low-noise cleaning. This hire combination includes the Puzzi 30/1 Power Washing Head

Price from: €260 Per Week

Other rates available from 2 days to 5 years.

Get your free quote Next day Ireland-wide delivery only €40, each way

Kärcher Puzzi 30/4 Spay Extractor + Puzzi 30/1 Power Washing Head

With a 30-litre fresh water capacity and a 350 mm floor nozzle, this innovative spray extraction machine is especially suitable for cleaning large carpeted areas. With a noise level of 66 dB (A), the Puzzi 30/4 spray extraction machine is the quietest wet vacuum cleaner in its class and ideal for low-noise cleaning. This hire combination includes the Puzzi 30/1 Power Washing Head

Description

Kärcher’s all-new Puzzi 30/4 makes carpet and upholstery cleaning easier and more productive. Using the proven spray-extraction method but with the added advantage of Kärcher’s revolutionary flexible suction tool, the 30/4 deep cleans carpets and leaves only a market-leading 9% residual moisture. This means that carpets and upholstery are left almost completely dry, reducing the risk of re-soiling and enabling cleaned areas to be used again very quickly. The 30/4 has a very small footprint to make storage and transportation easy, and to enable use in confined spaces. The new removable dirty tank makes emptying and refilling easy and safe.

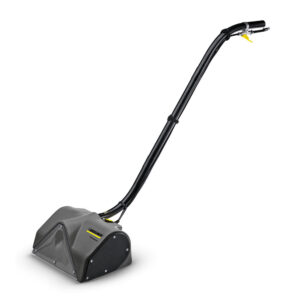

Puzzi 30/1 Power Washing Head – Adding More Cleaning Power

This hire comes with Kärcher’s PW 30/1 power brush which significantly boosts the Puzzi 30/4 spray extraction machine’s effectiveness and work rate. Its motorised roller brush does a deeper and faster job cleaning carpets than the standard Puzzi floor tool, working into the carpet to shake loose and lift dirt from the fibers.

puzzi 30/1 power washing head

User-friendly EASY Operation operating concept
Removable wastewater container
To protect against dirt, the dirty water tank’s handle is attached to the outside.
The dirty water tank is easy to remove and can also be used to fill the fresh water tank.
A short description on the rear of the dirty water tank explains the work process in a way that is easy to understand.

Extremely quiet
With just 66 db(A), the Puzzi 30/4 is one of the quietest wet vacuum cleaners.
Thanks to the low noise volume, the machine can be used everywhere,even during business hours and in hotels.
The low noise emissions protects the operator and allow longer work intervals.

For large areas
Large transport wheels
Large tank capacity
Even with a full 30-litre fresh water tank, the Puzzi 30/4 can be easily transported lying on its back.
An integrated level indicator display shows the operator the current fresh water level.
The fresh water filter protects the components and can be removed without tools and cleaned.

High suction power
High cleaning performance
Height adjustable handle
Power outlet for PW 30/1
The integrated power outlet enables flexible use of the PW 30/1 without an additional power source.
When not in use, the power outlet is effectively protected by an automatically closing flap.
The PW 30/1 increases the area performance, cleans the pile with a rotating brush and aligns it in one direction.

Features

Removable wastewater container

  • To protect against dirt, the dirty water tank‘s handle is attached to
    the outside.
  • The dirty water tank is easy to remove and can also be used to fill
    the fresh water tank.

Extremely quiet

  • With just 66 db(A), the Puzzi 30/4 is one of the quietest wet vacuum
    cleaners.
  • Thanks to the low noise volume, the machine can be used
    everywhere,even during business hours and in hotels.

Large tank capacity

  • Even with a full 30-litre fresh water tank, the Puzzi 30/4 can be easily transported lying on its back.
  • An integrated level indicator display shows the operator the current fresh water level.

Equipment

  • Spray hose with integrated water feed, 4 m
  • Power outlet for professional power brush, PW 30/1
  • Spray suction hose (m), 4 m
  • Wide floor nozzle with flexible suction lip
  • Handle with trigger

Puzzi 30-1 Features

Simple Operation

  • Fast and simple attachment in place of the floor nozzle.
  • The rotation of the roller brush facilitates work with the PW 30/1.
  • Easy start with toggle switch.

Rotating Brushes

  • For intensifying the cleaning process and aligning the carpet fibres.

Improved cleaning performance

  • Increase of area performance by up to 35 percent.

Transparent viewing window

  • Inspection window at washing head for continuous monitoring of return suction.

Technical Information

Max. area performance (m²/h) 60 - 75
Air flow rate (l/s) 74
Vacuum (mbar/kPa) 254 / 25,4
Spray rate (l/min) 3
Spray pressure (bar) 4
Fresh/dirty water tank (l) 30 - 15
Turbine power (W) 1200
Pump power (W) 70
Voltage (V) 220 - 240
Frequency (Hz) 50 - 60
Weight without accessories (kg) 26
Dimensions (L × W × H) (mm) 580 x 460 x 930
Puzzi 30/1
Max Area (mtr sq/h) 70-110
Power rating brush (W) 60
Current Type (V/hz) 220 - 240 / 50 - 60
Weight without Accessories (Kg) 5.9
Dimensions (L x W X H) 350 x 260 x 835

User Manuals

Puzzi 30/4 Product Information Download
Puzzi 30/4 User Manual Download
Puzzi 30/4 Quickstart Guide Download
Puzzi 30/1 Operating instructions Download
Puzzi 30/1 Product Info Download
